- Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package (Go to GIGABYTE's website for the latest CPU support list.)
- L2 cache varies with CPU
- 1333/1066/800 MHz FSB
- North Bridge: Intel® G41 Chipset
- South Bridge: Intel® ICH7
- 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
- Dual channel memory architecture
- Support for DDR3 1333(O.C.)/1066/800 MHz memory modules
- 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
- Dual channel memory architecture
- Support for DDR2 1066(O.C.)/800/667 MHz memory modules
North Bridge:
- 1 x D-Sub port
- VIA VT1708S codec
- High Definition Audio
- 2/4/5.1-channel
- Support for S/PDIF Out
- Support for CD In
1 x Atheros AR8151 chip (10/100/1000 Mbit)
South Bridge:
- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

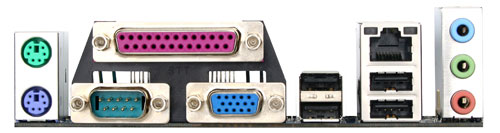

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x parallel port
- 1 x serial port
- 1 x D-Sub port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In/Line Out/Microphone)
RM199 Bank In or Cash
3 Years Warranty
